IMAS-CONNECT™
Adapter system for industrial connectors, Keystone jacks and PushPull connectivity
Adapter systems based on KT grommets
Adapter grommets for QUICK systems
Accessories
Info guide – everything you need to know about the adapter grommets
Info guide – everything you need to know about the adapter grommets
The IMAS-CONNECT™ adapter system is a modular designed grommet system for mounting circular connectors, Keystone jacks, panel interface connectors, hose fittings, pressure compensation elements and much more.
By utilising the modular adapter system, the cable entry frame becomes a hybrid system. Pre-terminated and standard cables or hoses can be routed and at the same time the system serves as an interface for connectors.
The grommets, made of elastomer with a polyamide body, fit perfectly into the split icotek cable entry frames, like KEL-U, KEL-ER, KEL-FG and KEL-QUICK and meet the protection classes IP54 to IP65/IP66, depending on the grommet type.

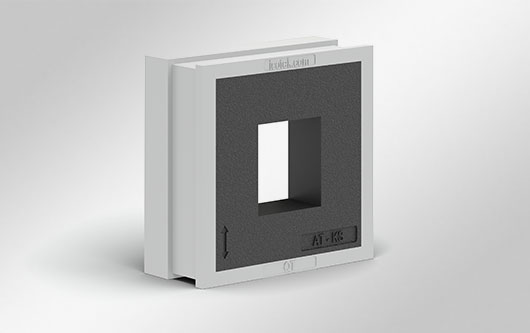

Adapter grommets AT-KS-AK / AT-KS – big variety in Keystone jack integration possibilities
The adapter grommets AT-KS are based on the large KT grommet, adapter grommets QT-AT-KS on the large QT grommet. The integrated polyamide body enables a snap-in-assembly of all jacks based on the Keystone system e.g. USB, RJ45, HDMI and approx. 70 other Keystone jacks. For assembly simply snap the Keystone jack into the adapter grommet.

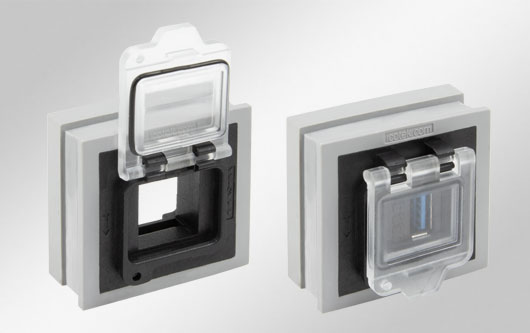

Adapter grommet for Keystone jacks also available with protection cover!
If a pre-assembled Keystone jack is not used directly, the hinged cover of the AT-KS-AK / QT-AT-KS-AK with integrated seal offers reliable protection against splash water and dust (IP54).
IMAS-CONNECT™ adapter solutions for industrial connectors 3A or 4A
IMAS-CONNECT™ adapter solutions for industrial connectors 3A or 4A

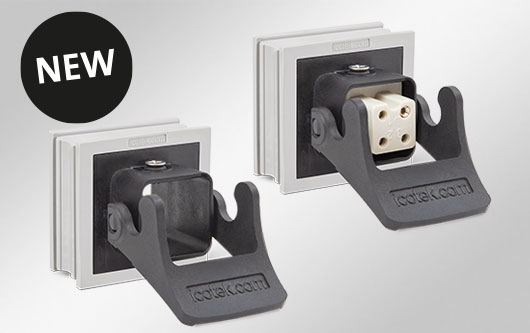

The AT-HA grommet is part of the IMAS-CONNECT™ modular adapter system and for the first time enables the direct integration of 3A or 4A inserts into an adapter grommet – without the need for an additional cut-out.
The adapter grommet AT-HA is compatible with icotek insert sets 3A and 4A as well as with inserts of numerous other manufacturers (Harting, Ilme, Phoenix Contact, TE Connectivity, Weidmüller, Lapp, Amphenol, Molex, RS Pro, ...).
When space is limited, icotek offers a compact alternative with the single-row, split cable entry frame MIS with integrated 3A / 4A connection.

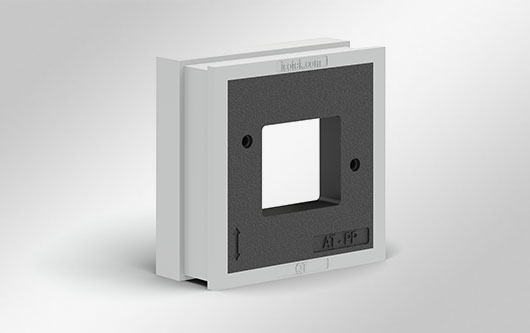

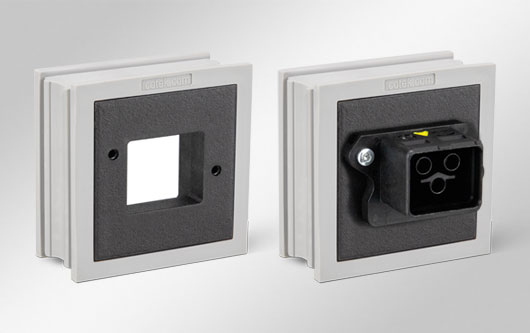

Adapter grommets AT-PP as an interface for PushPull connectivity
The grommet AT-PP is constructed on the basis of a large KT cable grommet, the grommet QT-AT-PP is based on the large QT grommet. The cut-out enables a screw assembly of all "compact" connector housings based on the PushPull device connection technology.

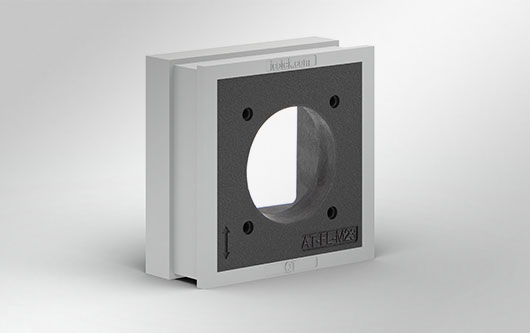

Adapter grommets AT-FL – suitable for M23 square flange connectors
The adapter grommets AT-FL are based on the large KT grommet, adapter grommets QT-AT-FL on the large QT grommet.
All square flanges with dimensions 19.8 x 19.8 mm (M23) can be integrated.
AT-FL provides ingress protection of up to IP65 (depending on the used flange and connector).

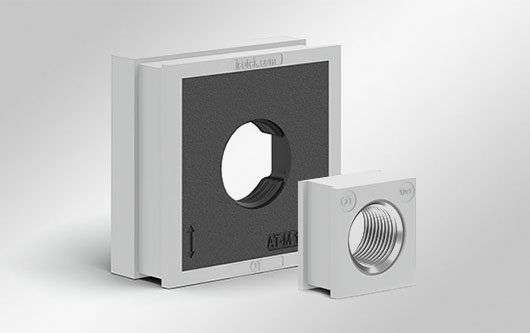

Adapter grommets AT-M and AT-K-M as an interface for small circular connectors

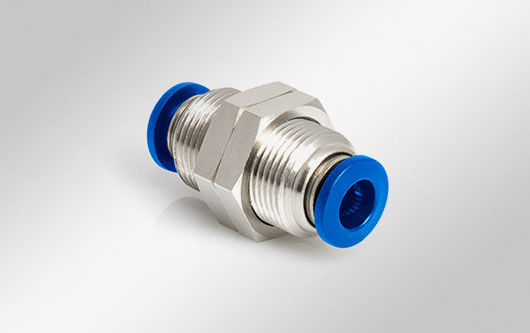

The adapter grommet AT-K-M is based in the small KT grommet, the grommet QT-AT-K-M on the small QT grommet. By using the AT-K-M adapter grommet several connectors can be inserted directly into the cable entry frame e.g. pneumatic bulkhead connectors M12 x 1.0, circular connectors and pressure compensation elements.
The AT-M model range as well as the QT-AT-M grommets are ideal for creating an interface for signal, data, power and hybrid connectors by simply screwing them into the AT-M thread. The adapter grommets AT-M are based on the large KT grommet. icotek also offers screw plugs to close the adapter grommet.
Blank adapter grommets AT-B and QT-AT-B are also available. The integrated polyamide body is completely closed on one side. Special bores can be made here as well as smaller flange bushes (for e.g. screw mounted hybrid device connectors).
