CONFiX™ cable conduit system
Flexible conduits and conduit connectors
CONFiX™ cable conduit systems at a glance
Cable conduit system CONFiX™
Cable conduit system CONFiX™
The CONFiX™ product range consists of bulkhead fittings which are angled at 90°. They can be mounted on machines or enclosure walls. Cable conduits provide protection against mechanical damage as well as various weather conditions.

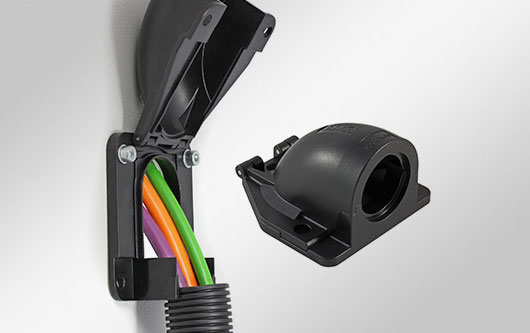

The liftable cover of the bulkhead fitting CONFiX FWS™ is fixed by a hinge to the mounting box, making the system very easy to mount and equip.
CONFiX™ FWS is offered in the following versions: FWS-A with metric internal thread sizes M16 to M50 for regular conduit connectors and FWS-B with a grooved conduit clip for direct pickup of cable conduits with sizes NW 13, 17, 23, 29, 37 and 50.

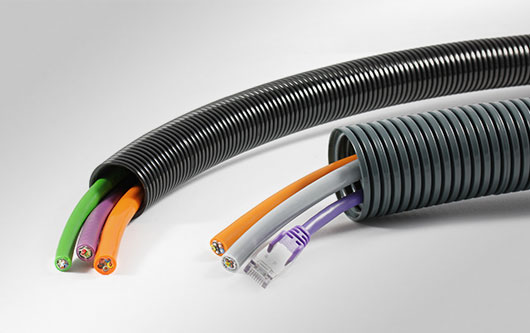

The corrugated cable conduits CONFiX™ WS can be used for various applications, depending on the material. icotek offers UV resistant polyamide cable conduits for high mechanical requirements (indoor and outdoor use) and polypropylene conduits with high chemical resistance against acids and alkalis.

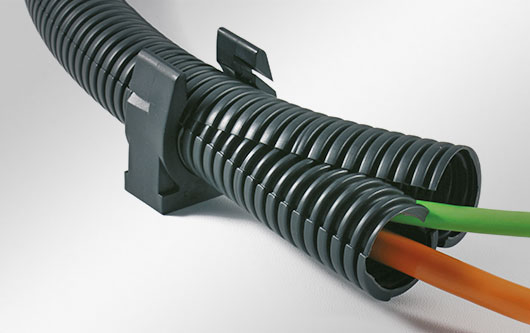

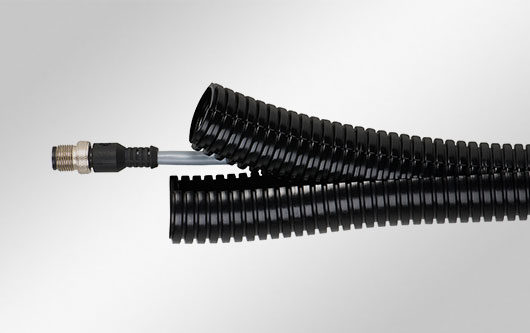

In addition, icotek offers split corrugated conduits CONFiX™ WST which are designed for pre-terminated cable protection in harsh environments. CONFiX™ SH mounting clips for quick mounting of split cable coduits round up the product range.
