Cable entry plates, membrane based
for cables without connectors
With the membrane based cable entry plates, cables without connectors, pneumatic and hydraulic hoses or optical fibres can be quickly and space-savingly routed into control cabinets, panels or machines and sealed with a certified protection rating of up to IP68 (acc. to EN 60529) and UL Type 4X* (acc. to UL 50-E). icotek cable entry plates are a cost, space and time saving alternative to conventional cable glands.
icotek cable entry plates at a glance
KEL-DPZ-HD round
Round hygienic gland plate with certified sealing IP66/IP68. Metric threads M25-M63.
Info guide – everything you need to know about multi cable entry plates
Info guide – everything you need to know about multi cable entry plates
Cable density is greatly increased compared to conventional solutions such as standard cable glands. In addition, the installation time is significantly reduced compared to multiple cable glands, as only one cut-out is required for several dozen cables and only one cable entry plate needs to be installed. This, combined with the reduction in space required, makes the icotek cable entry plate solution an excellent choice.
Cable entry plates – the cable gland alternative
The icotek cable entry plates are available in a wide range of round and rectangular designs. With an installation height of 8 to 14.5 mm, they are very flat and have a smooth and even surface. Dirt recesses are thereby prevented, making them suitable for the use in medical, food packaging and cleanroom applications. In addition, icotek cable entry plates are detergent resistant (ECOLAB certified).
The cable entry plates consist of a robust plastic or metal frame which is completely moulded with elastomer. The front of the cable entry plate has pierceable membranes to accommodate a range of cable diameters, on the back there are conical cable sleeves to ensure a double sealing of the cables with certified protection rating of up to IP68 (acc. to EN 60529) and UL Type 4X* (acc. to UL 50-E). This unique grommet design also provides a good strain relief.
icotek cable entry plates – quick and easy installation
icotek cable entry plates – quick and easy installation
Depending on the model, it can be either mounted with screws, simply plugged into the cut-out without tools, or be fixed with a locknut. The required cut-outs are either metric standard cut-outs (M20 – M85) or correspond to standard cut-outs of 16- and 24-pin heavy-duty connectors. The assembly of the cable entry plates can be done within seconds. Simply make a small hole in the thin membrane and push the cable through. Check out our assembly video and convince yourself.
Large variety of cable entry plate types
The different series of icotek multi cable entry plates offer a wide range of application possibilities:

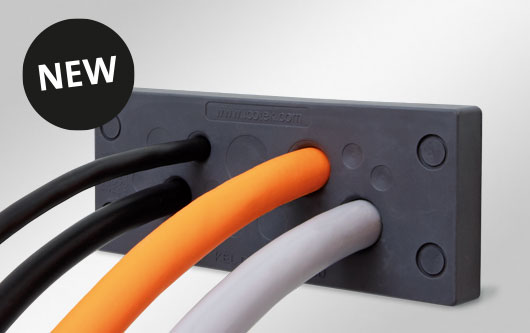

- icotek offers the cable entry plate KEL-DPU 24 with protection classes IP66/IP68 and UL Type 4X* for the highest demands on ingress protection, robustness and hygiene. A tool-free plug-in mounting is possible.

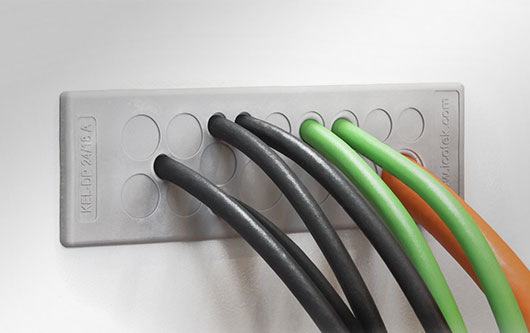

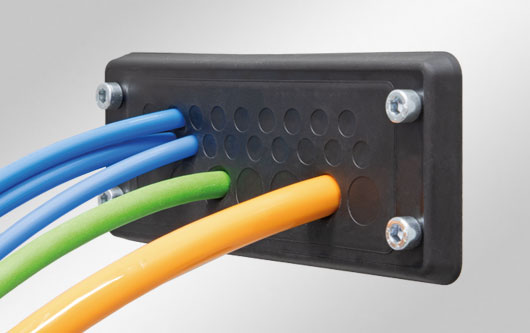

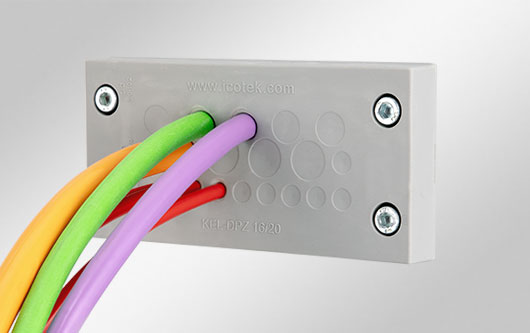

- The rectangular cable entry plates KEL-DPZ and KEL-DPR are available in numerous sizes and configurations and offer a high degree of ingress protection (up to IP66) and a very high cable density.

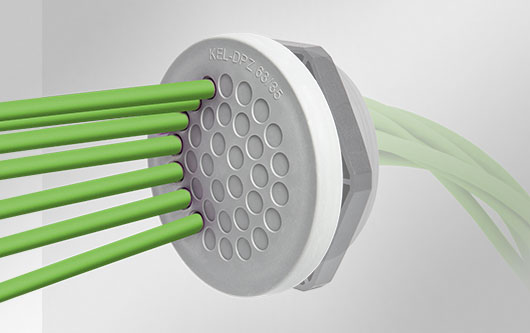

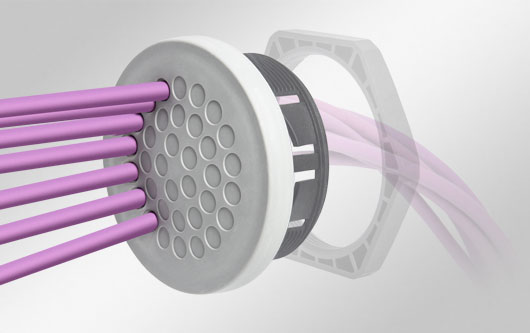

- The round version of the cable entry plate KEL-DPZ can be mounted into metric cut-outs from M25 to M63 and fixed with a locknut without the need of tools. The double sealing of the cables enables a high ingress protection IP66/IP68 and UL Type 4X*.

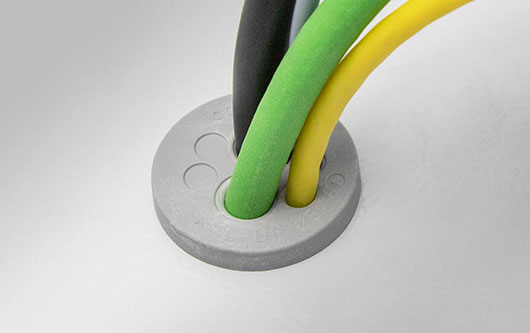

- Depending on the design, the cable entry plates in the KEL-DP product range can be plugged quickly and without tools into rectangular and metric round cut-outs. They allow a sealing of the cables with protection classes up to IP65.

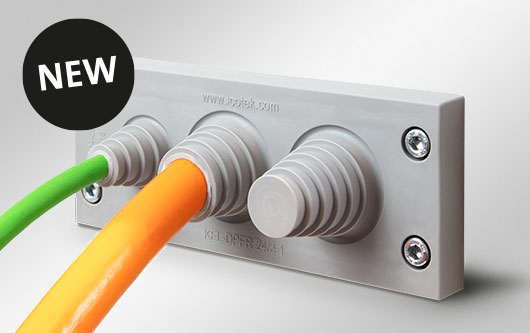

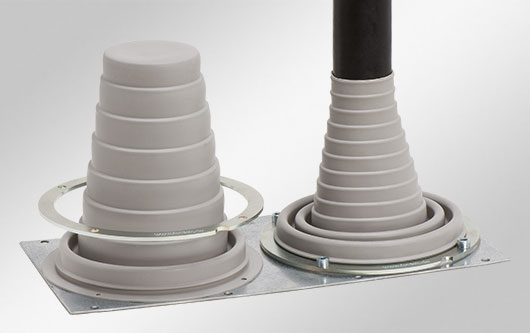

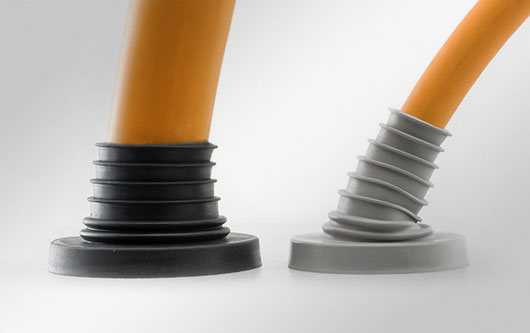

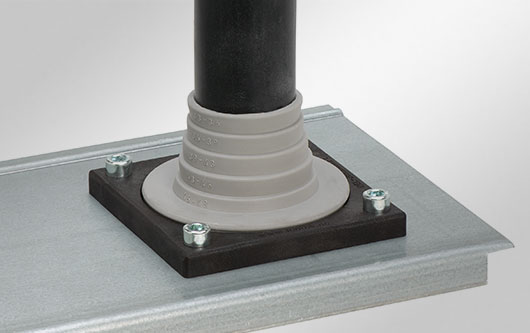

- For routing supply lines with diameters of up to 115 mm icotek offers innovative pyramid shaped cable entry grommets KEL-DPF, KEL-JUMBO flex and KEL-ULTRA flex, which are perfectly flexible for feeding rigid supply cables at angles with very little effort.
- For applications with lower requirements on ingress protection icotek offerscable pass-through plates with brush seal, specifically designed to feed cables easily into server racks, control panels and through raised floors and walls.
Well tested and certified
Approvals and standards such as flame class UL 94-V0, IP and UL rated ingress protection, UL recognized, DNV, RINA, EN 45545-2 and ECOLAB detergent resistance enable icotek cable entry systems to be real alternatives to conventional cable glands. Certificates or declarations of conformity can be requested directly from us.
