Cable pass-through with brush seal
Brush plates and brush strips for enclosures, server racks and machines
icotek offers cable pass-through solutions with brush seal like brush plates and brush strips that are perfectly suitable for applications where no high sealing rate is required. The icotek brush seal solutions are meant for dust- and dirt-proof cable pass-through of lines with or without pre-assembled connectors.

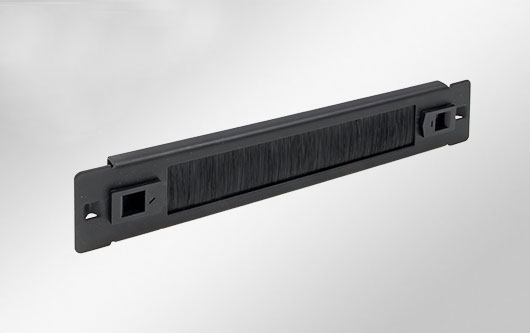

icotek brush plates and strips at a glance
Info guide – everything you need to know about brush cable pass-throughs
Info guide – everything you need to know about brush cable pass-throughs
The application areas for a brush based cable pass-through are very versatile, e.g. in an electrical enclosure, a server rack, on a machine wall or on raised floors. icotek brush plates and brush strips are a cost-effective solution for a professional cable management.
The brush seal solutions allow reduced airflow while filtering out dust and larger particulate matter. Thermal protection and visual screening are additional benefits. icotek brush plates also protect cables against wear due to sharp edges of the cut-out.

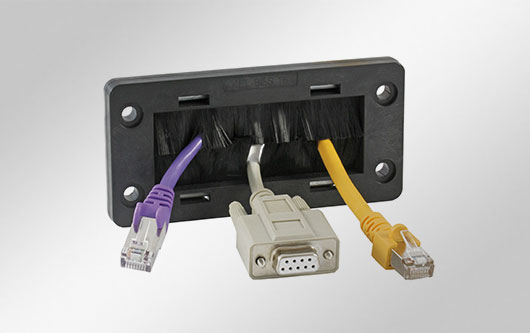

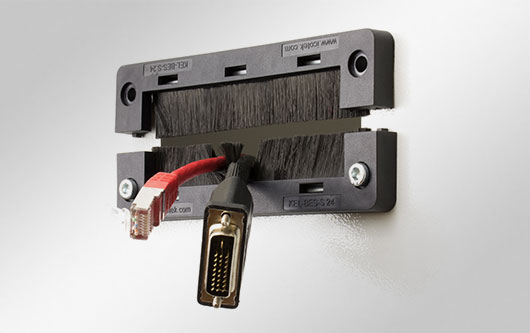

The rectangular brush plates KEL-BES and KEL-BES-S match exactly the cut-out dimensions for 10-, 16- or 24-pin standard industrial connectors. For round metric cut-outs M32 and M50 icotek offers the split brush plate KEL-BES-S round. It can be either directly snapped into the cut-out or screwed with a locknut.
Brush strips as cable pass-through for enclosure bases
Brush strips as cable pass-through for enclosure bases
For cable pass-through applications in base areas of enclosures and server racks by numerous manufacturers and for wide cut-outs on machine walls icotek offers the universal brush strip KDR-BES-U. Due to the innovative clamp profile the brush strip can be clamped on any sheet metal edge with a thickness of 1.5 – 2 mm, even in a 90° angle!
The 2-piece enclosure gland plates KDR-BES and KDRS-BES-U are supplied with pre-assembled brush grommets. The base plates are suitable for Rittal TS8 or VX25 enclosures and are installed with standard Rittal clips or screws.
