KEL-BES-S | Split cable gland with brush strips
for cable pass-through, thread sizes M32 / M50
For round metric cut-outs M32/M50 icotek offers the split cable gland with brush strips KEL-BES-S round. It can be either directly snapped into the cut-out or screwed with a locknut, which is included in the shipment.
Split cable glands with brush strips KEL-BES-S are suited for routing cables into server racks, control panels and electrical enclosures. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
Note: Snap-in mounting possible if wall thickness is 1 - 2.5 mm. For wall thickness < 1 mm and > 2.5 mm, a locknut must be used.
Part No.
51538
Specifications
Zertifikate
REACH, Made in Germany, RINA, RoHS
Flame class
UL94-V0, self-extinguishing
Mounting options
Snap-in, Fasten with locknut
Temperaturbereich Range Max
90 C°
Temperaturbereich Range Min
-20 C°
Properties
halogen free, silicone free
Max. cable diameter
10 mm
Cut-out size, round
20 mm
Advantages and benefits
Fast and easy assembly
Subsequent assembly possible
Versatile utilisation
Allows reduced airflow while filtering out dust, hair and larger particulate matter
Visual screening
Protects cables against wear due to sharp edges of the cut-out
Product variants and sizes
KEL-BES-S 32
Number
51538
EAN
4251269318702
Packaging Unit
Unknown
Zertifikate
REACH, Made in Germany, RINA, RoHS

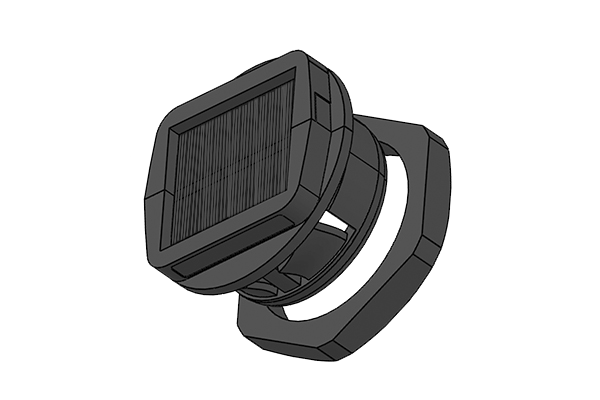

KEL-BES-S 50
Number
51540
EAN
4251269318306
Packaging Unit
Unknown
Zertifikate
REACH, Made in Germany, RINA, RoHS
For round metric cut-outs M32/M50 icotek offers the split cable gland with brush strips KEL-BES-S round. It can be either directly snapped into the cut-out or screwed with a locknut, which is included in the shipment.
Split cable glands with brush strips KEL-BES-S are suited for routing cables into server racks, control panels and electrical enclosures. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
Note: Snap-in mounting possible if wall thickness is 1 - 2.5 mm. For wall thickness < 1 mm and > 2.5 mm, a locknut must be used.
