KEL-EMC | KEL-EMC-Z cable assembly
with shield earthing and intgrated strain relief
Cable entry, EMC shield earthing and strain relief – all in one location!
Cables pass through the KEL cable entry frame and lead directly to cable shield earthing and strain relief. Three functions carried out quickly and easily!
KEL-EMC-Z: Custom configurations are available for shield clamps up to 16 mm in diameter with minimal order quantities and lead time.
Material:
KEL-EMC: Stainless steel
KEL-EMC-Z: Mild steel, galvanically zinc plated
Part No.
36520
Specifications
Zertifikate
REACH, Made in Germany, EMV, RoHS
No. of screw holes
2
Length
35 mm
Min. shield diam.
6 mm
Mounting options
Screw type mounting
Mounting location
Kabeleinführungen, Metal sheets
Properties
vibration proof
Height
19.5 mm
Advantages and benefits
Large surface contact between cable shield and housing, especially on conductive coated surfaces
Easily combines cable routing, EMC and strain relief due to the use of the same mounting holes
Available without SKL shield clamps if only additional strain relief is required
M6 Mounting hole for earthing tape or PE connection (KEL-EMC-Z)
Direct, easy and quick contact to the enclosure
Space saving, usable for up to 10 cables with the two row model
Replacement for EMC cable glands, even for pre-terminated cables
Product variants and sizes

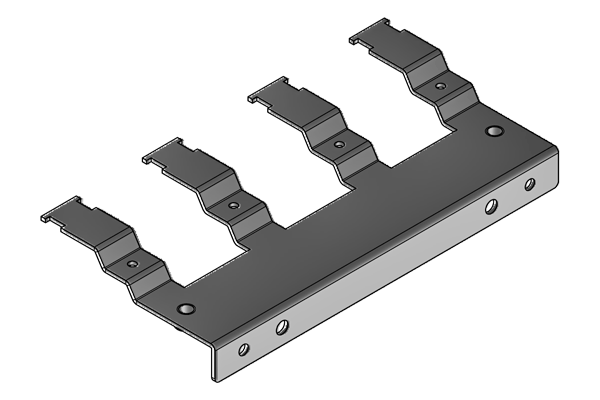

KEL-EMC-Z 183|4
Number
36528
EAN
4251269331343
Packaging Unit
Unknown
Zertifikate
REACH, Made in Germany, EMV, RoHS

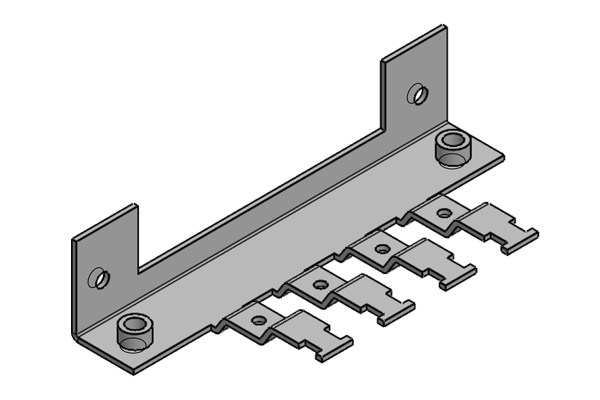

KEL EMC-Z 16|4
Number
36525
EAN
4251269303050
Packaging Unit
Unknown
Zertifikate
REACH, Made in Germany, EMV, RoHS

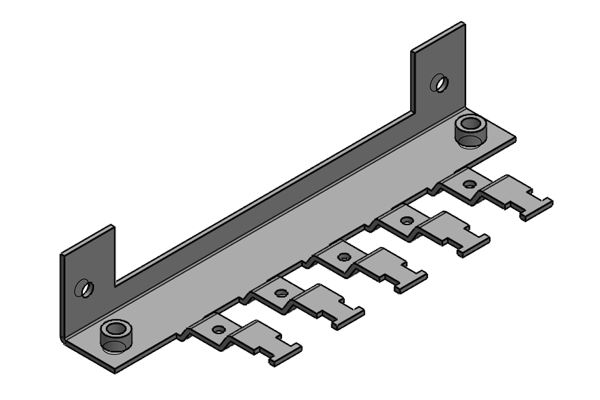

KEL-EMC-Z 24|5
Number
36527
EAN
4251269303074
Packaging Unit
Unknown
Zertifikate
REACH, Made in Germany, EMV, RoHS
