Cover plugs
for cable entry frames & plates
The openings at the fastening points of the cable entry frames can be closed with the cover plugs.
There are two versions: One version to cover the openings when using threaded bushings, one to cover the screws. The cover plugs can be used with the products of the KEL series.
The cover plugs can also be used with the products of the KEL-DPZ series. They are available in black and grey.

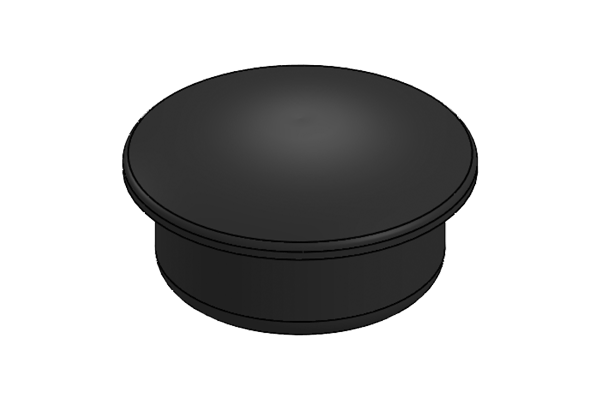

When fastening from the rear using a threaded bushing, an opening is created at the front at the fastening points. These can be closed with the cover plugs A in black (Order No. 99142).
When fastening from the front by means of screws, the openings at the screw heads can be closed with the cover plugs B in black (order no. 99200). The cover plugs can only be used for M5 DIN 912 screws.
When fastening from the front by means of screws, the openings at the screw heads can be closed with the cover plugs B in black (order no. 99200) or cover plugs C in grey (order no. 99201). The cover plugs can only be used for M5 DIN 912 screws.
Part No.
99142
Specifications
Zertifikate
REACH, RoHS
Temperaturbereich Range Max
70 C°
Mounting location
Kabeleinführungen
Temperaturbereich Range Min
0 C°
Properties
higher chemical resistance
Advantages and benefits
Simple closing of the openings at the fastening points of the KEL / KEL-DPZ
Smooth finish on the frame surface
No dirt recesses
Product variants and sizes

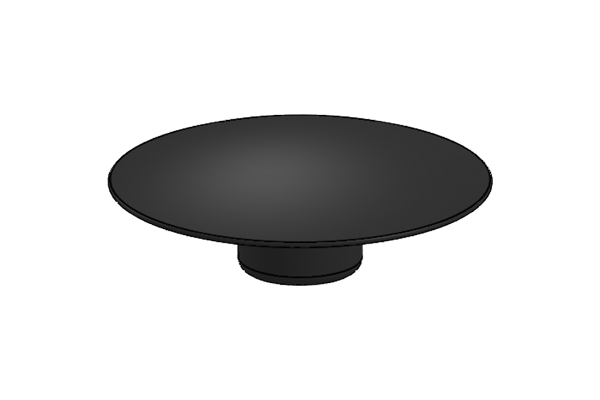

Cover plug B
Number
99200
EAN
4251269324208
Packaging Unit
Unknown
Zertifikate
REACH, RoHS

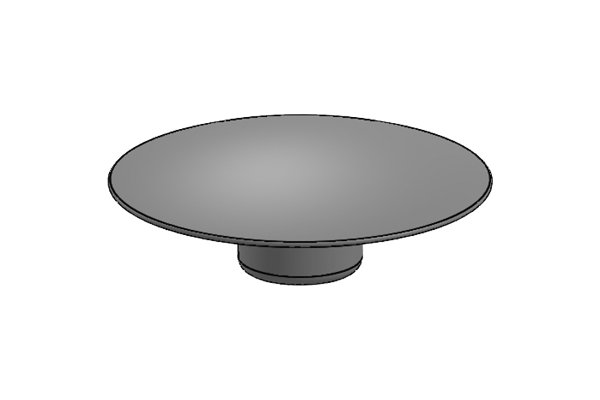

Cover plug C
Number
99201
EAN
4251269324215
Packaging Unit
Unknown
Zertifikate
REACH, RoHS
The openings at the fastening points of the cable entry frames can be closed with the cover plugs.
There are two versions: One version to cover the openings when using threaded bushings, one to cover the screws. The cover plugs can be used with the products of the KEL series.
The cover plugs can also be used with the products of the KEL-DPZ series. They are available in black and grey.
